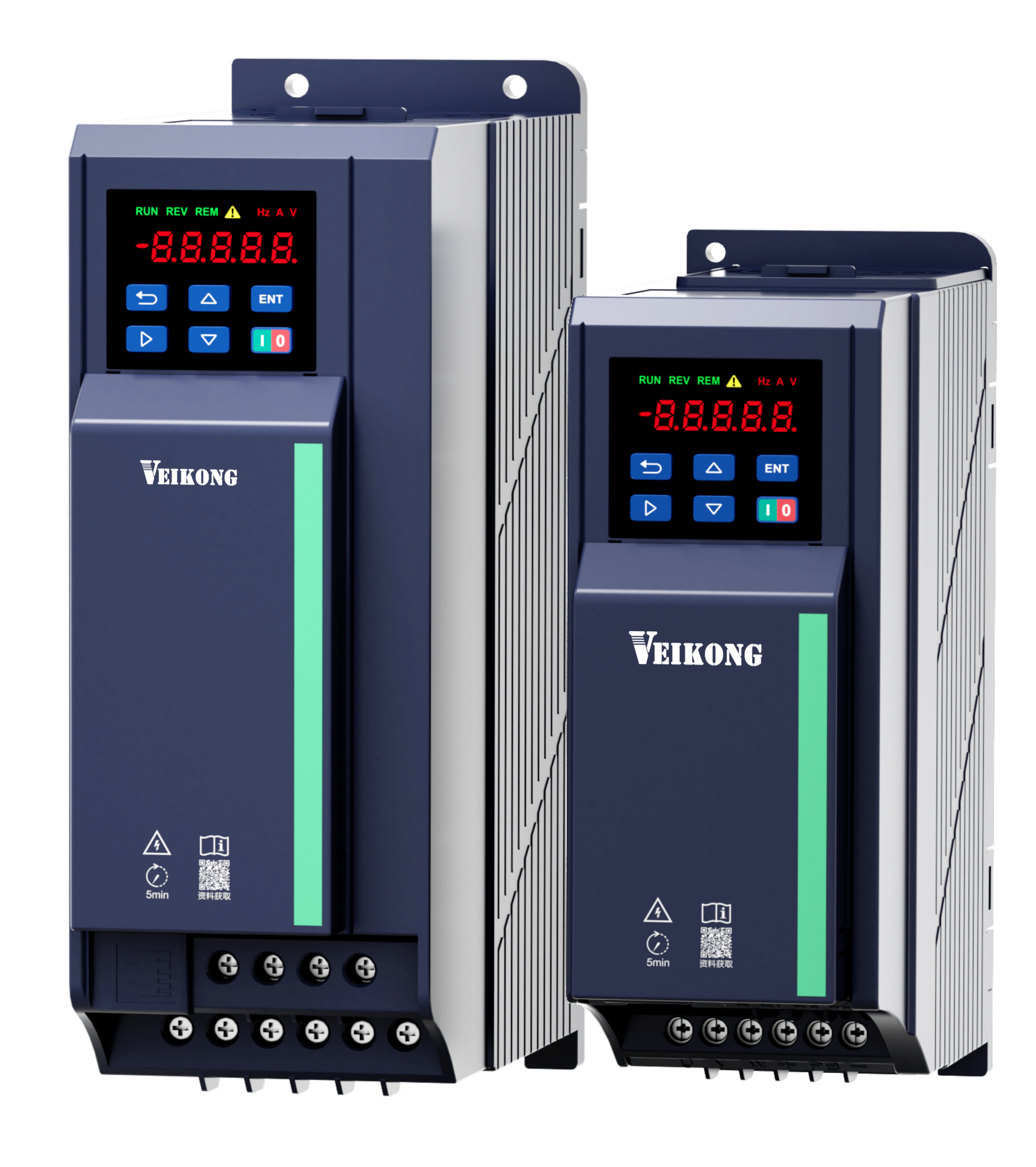

VFD150 Series Compact Frequency Inverter 0.75kw-18kw 380V/220V
제품 상세 정보
| 보증 | 24개월 | 입력 전압 | 단상/3상 220V: 200V~240V 3상 380V~480V: 380V~480V |
|---|---|---|---|
| 과부하 용량 | 일반 용도: 60S의 경우 정격 전류 150% 경부하 용도: 60S의 경우 정격 전류 120% | 작동 모드 | 속도제어, 토크제어(SVC) |
| 입력 주파수 | 50Hz/60Hz, 변동률 5% 미만 | 속도 범위 | 1:100(V/f); 1:200(SVC) |
제품 설명
1. Company Profile:
Shenzhen VEIKONG Electric Co., Ltd. is a reputable high-tech enterprise, focusing on R&D, manufacturing and trading of medium & low voltage inverters and solar pumping inverters, providing customers with integrated system solutions.
The company owns a professional R&D team and experienced management team with over 20 years of industry experience, ranking among China’s first batch of independent AC drive enterprises.
It adopts cutting-edge technologies including high-efficiency MPPT algorithm, SPWM, sensorless vector control, vector and torque control. Its inverters reach international advanced level, which can directly replace equivalent brands from Europe, America and Japan, offering strong technical support for clients.
The company strictly implements ISO9001 quality management system. All products pass CE, IEC certifications and other technical approvals. It keeps upgrading technology and products to meet market and customer demands.
2. Model Naming Rule
Format: VFD150-Power-Voltage-B
Power: 2R2 = 2.2KWS: Single phase;
T: Three phase 2: 200-240
V; 4: 380-480V
B: With built-in braking unit
3. Environmental & Installation Specification
Installation Location: Away from electromagnetic radiation, no metal powder/corrosive/flammable gas/oil mist/salt
Altitude: 0~3000m; above 1000m, rated current reduces 1% per 100m rise
Ambient Temperature: -10℃~+40℃ (max 50℃); above 40℃, rated current reduces 1.5% per 1℃ rise
Humidity: Less than 95%RH, non-condensing
Vibration: Less than 5.9m/s² (0.6g)
Storage Temperature: -20℃~+60℃
Installation Type: Wall-mounted
Protection Level: IP20
Cooling Method: Forced air cooling
4. Why Choose VEIKONG
-
Strong Technical StrengthOver 20 years of R&D and manufacturing experience; core vector control & torque control technologies reach international advanced standard; fully compatible to replace European, American and Japanese mainstream brands.
-
Complete Product Performance & Cost AdvantageVFD150 series with compact structure, built-in braking unit, complete protection and rich control functions; reduces additional purchasing cost and wiring difficulty; high cost-performance ratio.
-
Strict Quality ControlFollow ISO9001 standard; pass CE/IEC global certifications; stable performance, strong adaptability to harsh working conditions.
-
Professional Customization & System SolutionProvide one-stop integrated industrial drive solutions; support model selection, technical parameter matching and on-site application guidance.
-
Rich Industry Application ExperienceWidely used in textile, printing & packaging, food, plastic, logistics, construction, woodworking, building materials, solar pumping, petroleum, chemical, hoisting, power supply and water supply industries.
-
Convenient Technical Support & After-salesProfessional technical hotline support; compatible with dedicated keyboard and PC TOOL software; easy parameter debugging, backup and recovery; perfect fault record and reset function.
Adhering to customer-oriented philosophy, VEIKONG prioritizes customer requirements to exceed expectations. Products are widely applied in multiple industries to create stable value for global users.
